IMS

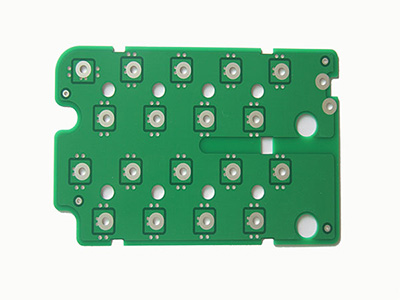

TCX is dedicated to IMS – Insulated Metal Base PCBs, including aluminium-based and copper-based. This segment is growing rapidly and supporting sectors including automotive, medical, lightning applications and industrial controls.

You can always contact us if you need further information or assistance, we are happy to help you.

IMS Manufacturing Capability

Feature

Technical specification

Number of layers

1 – 2 layers

Materials

Aluminium   & copper plates. FR-4, PTFE, thermal dielectrics.

Dielectric thickness

0.05mm – 0.20mm

Thermal conductivity

1-6 W/m/K

Profile method

Punching, Liquid cooled routing

Copper weights (finished)

35μm   – 140μm

Minimum track and gaps

0.10mm / 0.10mm

Metal core thickness

0.40mm – 3.20mm

Maxmimum dimensions

550mm x 700mm

Surface finishes available

HASL, LF HASL, OSP, ENIG, Imersion   tin, Immsersion silver

Minimum mechanical drill

0.30mm

Minimum laser drill

0.10mm standard, 0.075mm advanced
